PCB SolderMask-Finished Pattern Inspection system


Special Function

Short, open circuit inspect function is powerful

General open/short circuit inspect before solder mask. We provide you with the solution after the solder mask, you can still inspect open/short circuit.

Professional Bonding Finger size and spacing inspect

Through Gerber data, we can know the position of the wire bonding, whether it is the size of the bond finger too small, or the bond finger too close, you can inspection.

Gold plating surface inspection
  • Solder mask after the copper-clad surface of contamination, resulting cannot be nickel plating / gold plating.
  • Nickel plating / Gold plating no good effects: Nickel plating / Gold plating on copper is to increase the stability and solder ability of electronic products.
  • Nickel can effectively prevent the spread of copper and other metals, if the nickel is insufficient, will make the electronic pin of the conductive durability reduced, nickel can also prevent solder crack.
  • Gold plating is insufficient, it is easy to make nickel oxidation, will greatly reduce the reliability of solder joints.

Software self-development, attention to after-sales service

Our company has been independent development of software, with more than 20 years of experience, even after the sale of products, but also continue to help customers update the software, and optimize the system.

Software operation is simple and fast, setting the parameters less than 5 minutes

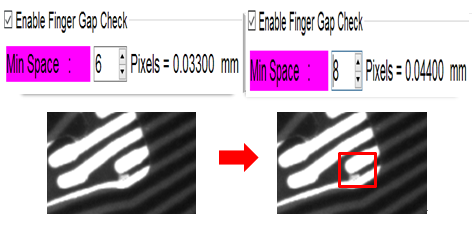

Parameters immediate feedback: When the parameters are modified, the instant image will immediately use the new parameters to determine the shortcomings, so that users can immediately look at the picture, adjust the parameters directly, and watch the results of the adjusted parameters, as shown in the picture. The user can significantly reduce the time to adjust the parameters. Adjust the parameters less than minimum 5 minutes.
